E-via / E-urbe

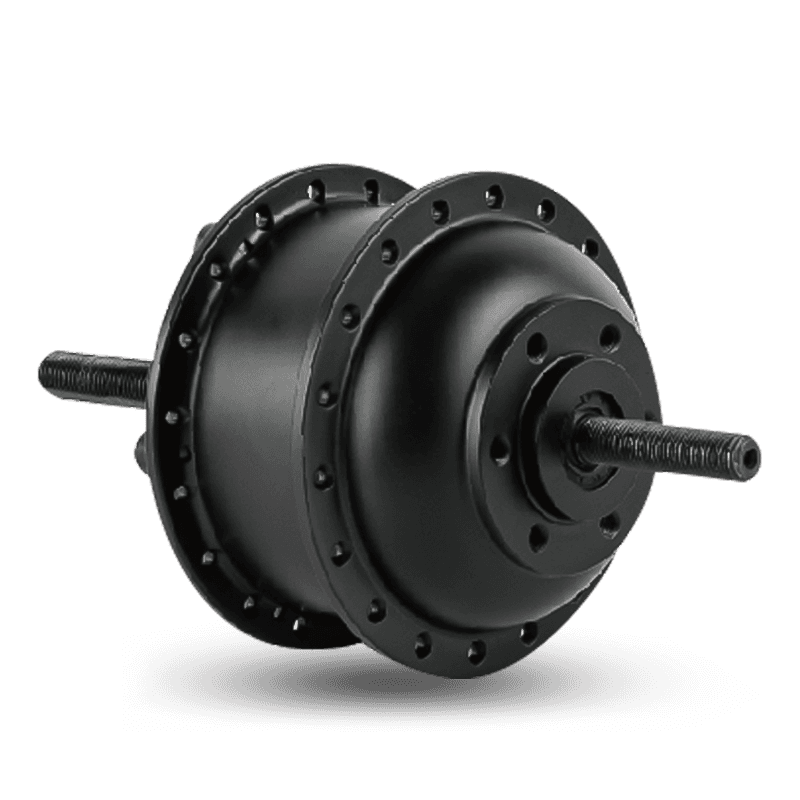

HT Mini sequela in motore Freewheel centrum e-civitatis et viae cursoriae destinatur, ut unum ex minimis motoribus rotoris centrum extra forum. Compatitur cum 36V ad 48V systemata altilium, tantum 1.95kg pensat, et vim aestimatam 220W cum super 30Nm torques praebet. Motor motor usque ad 250W cum armenti torques 40Nm attingere potest. Eius consilium externum rotoris errores cumulativos minuit, vires auget, stabilitatem et vetustatem minuit.
| Motrix structura: | Rated Voltage(V); | Rated Power(W); |
| Praecursor Hub Motor | 36-48 | 180-250 |
| Apicem Torque (N.m.); | Pondus (KG); | VETUS (mm); |
| 40 | 1.95(220w) | 135 |
Product Parameters

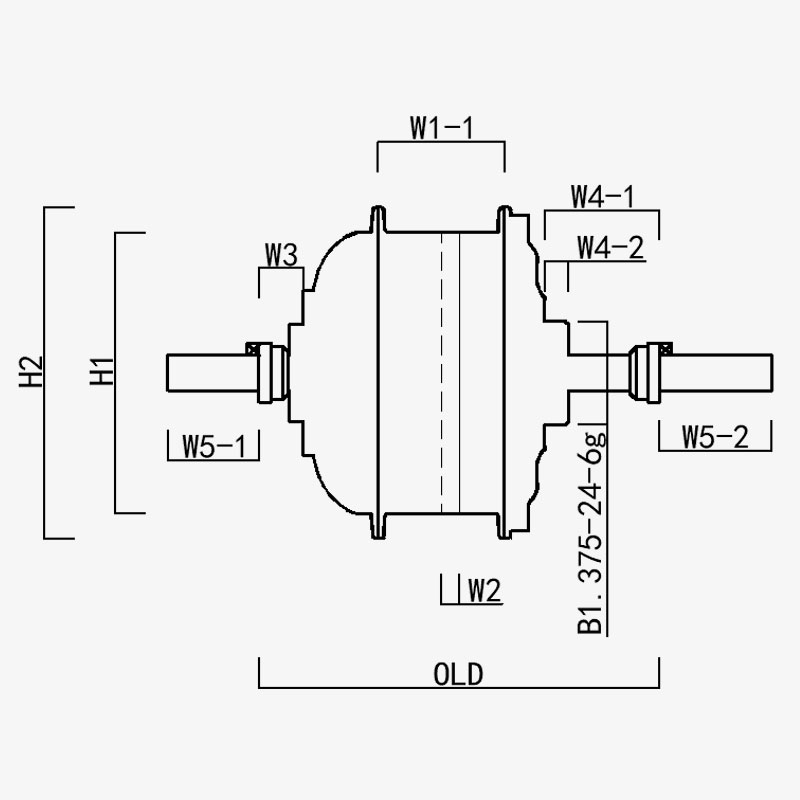

Drawing
Contact Us
| H1/ OD: | 95.5 |
| H2/Motor OD: | 112.5 |
| W1(-1/-2); | 43 |
| W2: | 6 |
| W3: | 15 |
| W4(-1/-2); | 39/9 |
| W5(-1/-2); | 31/39 |
| VETUS: | 135 |
| Axem Longitudo | 205 |
Motor exteriorem diametrum habet 95mm, cum velocitate gyratoria musca 7-, pondo tantum 1.95kg, motoris rotoris exterioris levis, potentia 250w aestimata, et torques equilis usque ad 40NM. A e-cursoriam socium.
Plastic ferrum calces patented: 5 temporibus torques nylon anni; spatium vitae maius quam 40.000 chiliometra; Infra post-venditio
Exterior rotor motor: firmior structura quam interior rotor, minus defectum rate
Ningbo Yinzhou HENTACH Electromechanical Co., Ltd. (olim Hengtai Motor) anno 1995 constituti et olim "Hengtai Motor" (nomen societatis nostrae Sinensium) publice suscepimus nomen Anglicum "HENTACH Motor" anno 2020. Utraque nomina eandem fabricam creditam innovationi electromechanicae per XXX annos dicatam repraesentant. Specialiter in dejectione et praecisione processus minimarum DC motorum, motorcycle motorcycli centrum motorum electrici, et admixtionum aluminium-magnesium pro vehiculis electricis, coniungimus rigorem ISO 9001 qualitatem temperantiae, administrationis exercitiorum maturam, et apparatum fabricandi / probationis ad certas solutiones liberandas.
With end-to-end capabilities spanning from raw material casting to final product delivery, we serve diverse markets including e-bikes, cargo vehicles, AGVs, golf cars, agricultural machinery, and e-karting. Our 9,000+㎡ campus (5,000㎡ built area) houses over 60 units of advanced production equipment, including 500-ton die-casting machines, precision CNC machine tools, laser marking systems, micro-arc oxidation lines, and two dedicated electric vehicle motor test benches. This infrastructure ensures efficient production and strict compliance with international quality standards.
Apud HENTACH (Hengtai), nos prioritizamus materias qualitates et technologiam proprietariam-nostrum nylon-ferrum calces patented testamentum est nostrae excellentiae machinalis. Ad vetustatem convalidandam, semel programma motorum 30,000 millia passuum excedentem semel passibus cautionem immiserunt. Consequuntur? Plus 50 motores non solum huic probationi convenerunt, sed eum superaverunt, cum nonnullis 50,000 milliaribus infigo attingentes. Haec realis-mundi effectio focus in firmitate nostra indeclinabilem reflectit et nos movet ut continenter innovationem ad solutiones mundiores, fortiores motores.
Fiducia notae globally notae sicut et Hengtai Motor et HENTACH Motoris, ubi ferrum calces innovationis patentes vetustatem probatam invenit.
