Viam / E-via
THE D-TYPE THRU AXLE Hub Motor, e-MTBs et e-via/Gravale bikes designatus, tantum 2.4kg（cassette inclusa cum 148mm axem ictus ponderat. Leve consilium suum et structura axem ictus altam vim et stabilitatem in altum velocitate sedendum curant. Cum potentia aestimata 48V 250W et super 50Nm torques armenti, compatitur cum cassetto sensori torquorum, dum leves accelerationem et responsurum effectum pro variis regionibus.
| Motrix structura: | Rated Voltage(V); | Rated Power(W); |
| Praecursor Hub Motor | 36-48 | 220-250 |
| Apicem Torque (N.m.); | Pondus (KG); | VETUS (mm); |
| 50NM | 2.4（Cum Cassette） | 141 |
Product Parameters

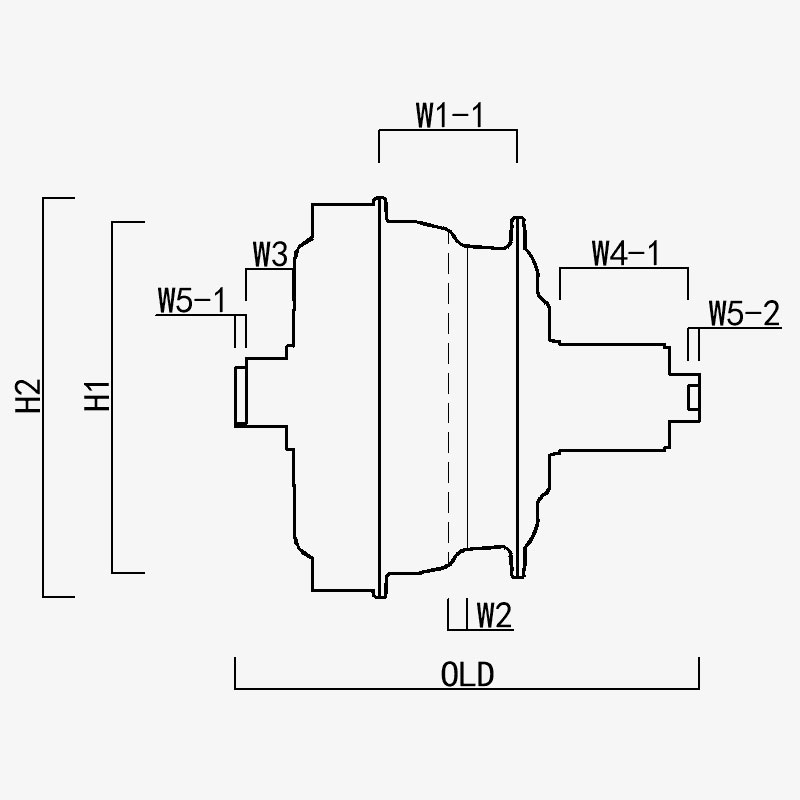

Drawing
Contact Us
| H1/ OD: | 112 |
| H2/Motor OD: | 128 |
| W1(-1/-2); | 44 |
| W2: | 6 |
| W3: | 15.25 |
| W4(-1/-2); | 42.5 |
| W5(-1/-2); | 3.5 |
| VETUS: | 141 |
| Axem Longitudo | 148 |
Plastic ferro calces patented: 5 temporibus torques nylon calces; spatium vitae maius quam 40,000 km; Infra post-Sales ministerium
Rotor externus motor: stabilior structura et rate minus defectus comparatus rotori interno
Latin 10mm dolium scapus structurae levioris et minoris, cum apertione calces 142mm, consequi potest torques >50NM, dolium 250w scapus motoris cum maximo torque in foro
Ningbo Yinzhou HENTACH Electromechanical Co., Ltd. (olim Hengtai Motor) anno 1995 constituti et olim "Hengtai Motor" (nomen societatis nostrae Sinensium) publice suscepimus nomen Anglicum "HENTACH Motor" anno 2020. Utraque nomina eandem fabricam creditam innovationi electromechanicae per XXX annos dicatam repraesentant. Specialiter in dejectione et praecisione processus minimarum DC motorum, motorcycle motorcycli centrum motorum electrici, et admixtionum aluminium-magnesium pro vehiculis electricis, coniungimus rigorem ISO 9001 qualitatem temperantiae, administrationis exercitiorum maturam, et apparatum fabricandi / probationis ad certas solutiones liberandas.
With end-to-end capabilities spanning from raw material casting to final product delivery, we serve diverse markets including e-bikes, cargo vehicles, AGVs, golf cars, agricultural machinery, and e-karting. Our 9,000+㎡ campus (5,000㎡ built area) houses over 60 units of advanced production equipment, including 500-ton die-casting machines, precision CNC machine tools, laser marking systems, micro-arc oxidation lines, and two dedicated electric vehicle motor test benches. This infrastructure ensures efficient production and strict compliance with international quality standards.
Apud HENTACH (Hengtai), nos prioritizamus materias qualitates et technologiam proprietariam-nostrum nylon-ferrum calces patented testamentum est nostrae excellentiae machinalis. Ad vetustatem convalidandam, semel programma motorum 30,000 millia passuum excedentem semel passibus cautionem immiserunt. Consequuntur? Plus 50 motores non solum huic probationi convenerunt, sed eum superaverunt, cum nonnullis 50,000 milliaribus infigo attingentes. Haec realis-mundi effectio focus in firmitate nostra indeclinabilem reflectit et nos movet ut continenter innovationem ad solutiones mundiores, fortiores motores.
Fiducia notae globally notae sicut et Hengtai Motor et HENTACH Motoris, ubi ferrum calces innovationis patentes vetustatem probatam invenit.
Si interest in productis nostris, consule nobis
